Description

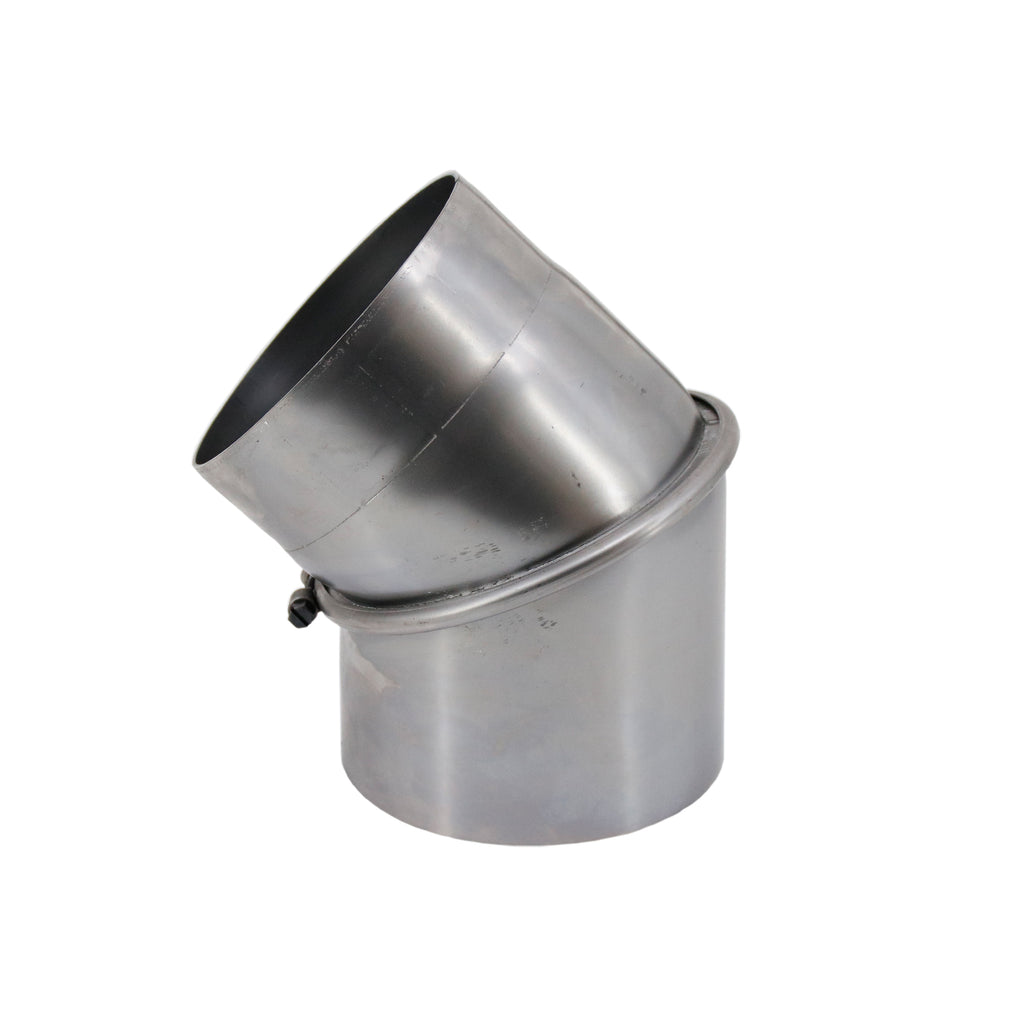

The elbow is used for a fireplace's rear or top connection to a chimney. Please note that other components, such as a double wall socket or extension, may also be necessary. Further, the elbow is used to extend and warp existing flue pipes.
Outer Thigh
Diameter 150 mm
143 x 143 mm
Diameter 160 mm
145 x 145 mm
Diameter 180 mm
152 x 152 mm
Diameter 200 mm
164 x 164 mm
Diameter 250 mm
178 x 178 mm
Technical Data
Material
Steel 2 mm
Temperature resistant
up to 600°C
Rejuvenation
50 mm, retracted
Adjustable
from 0° to 45°
with Cleaning door
No
polished cross seams
No
Norm
DIN EN 1856-2:2009
