Description

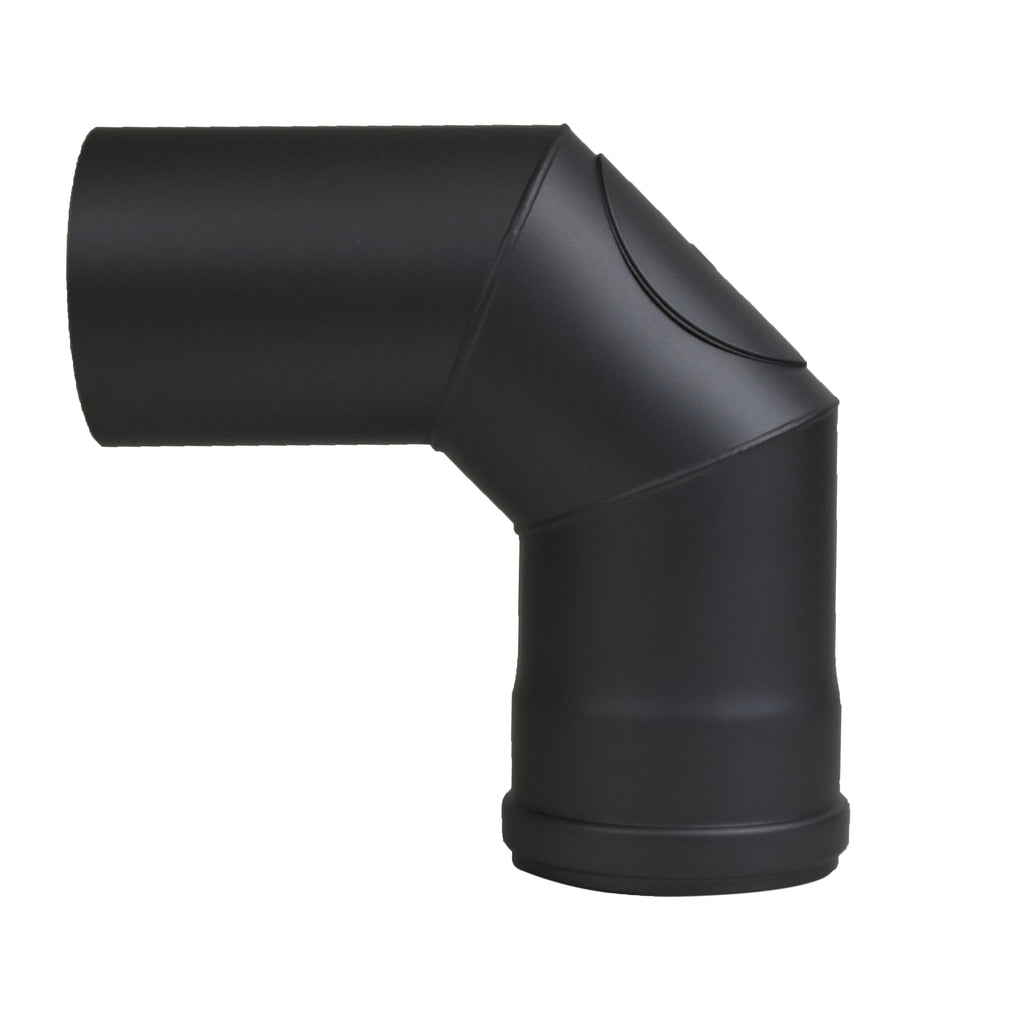

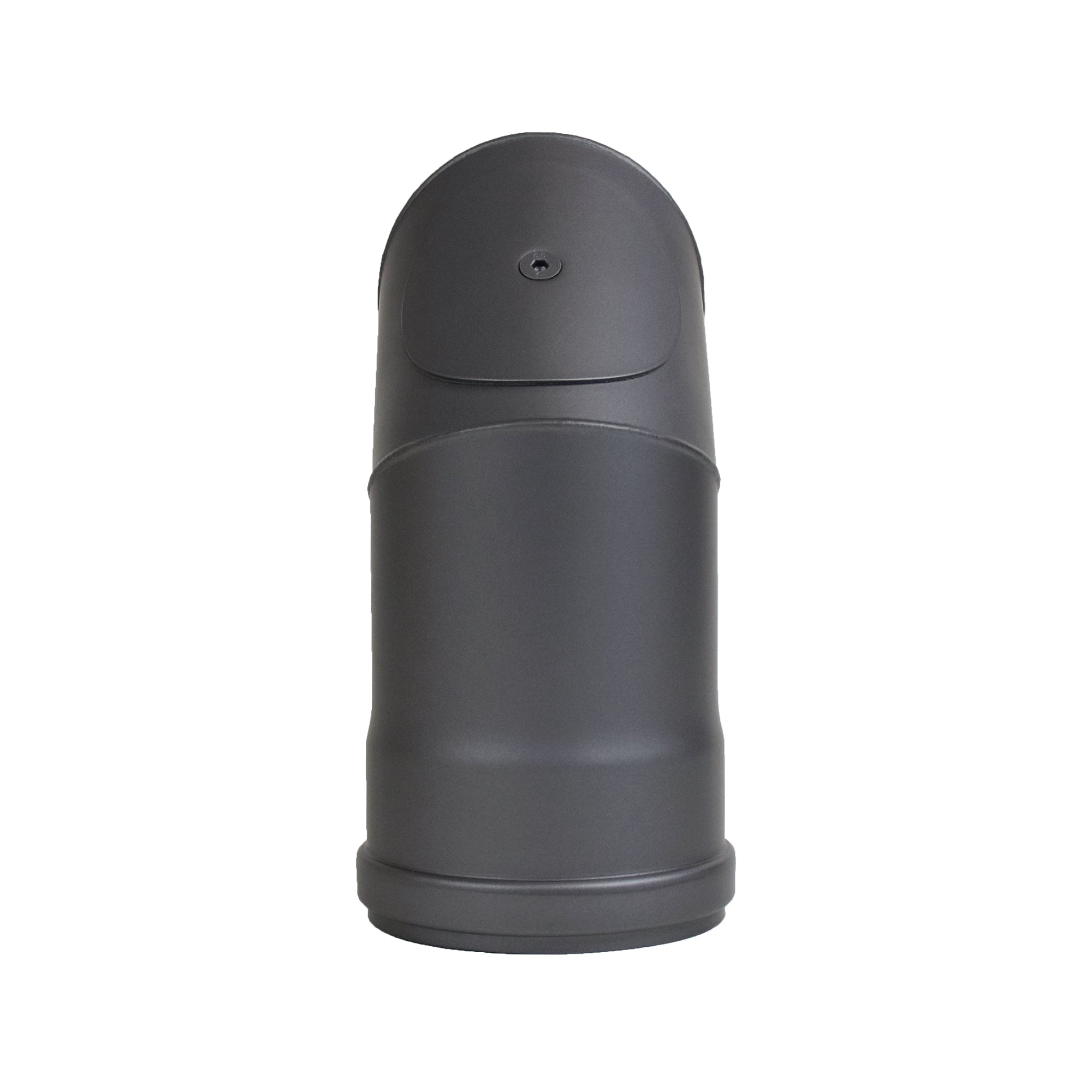

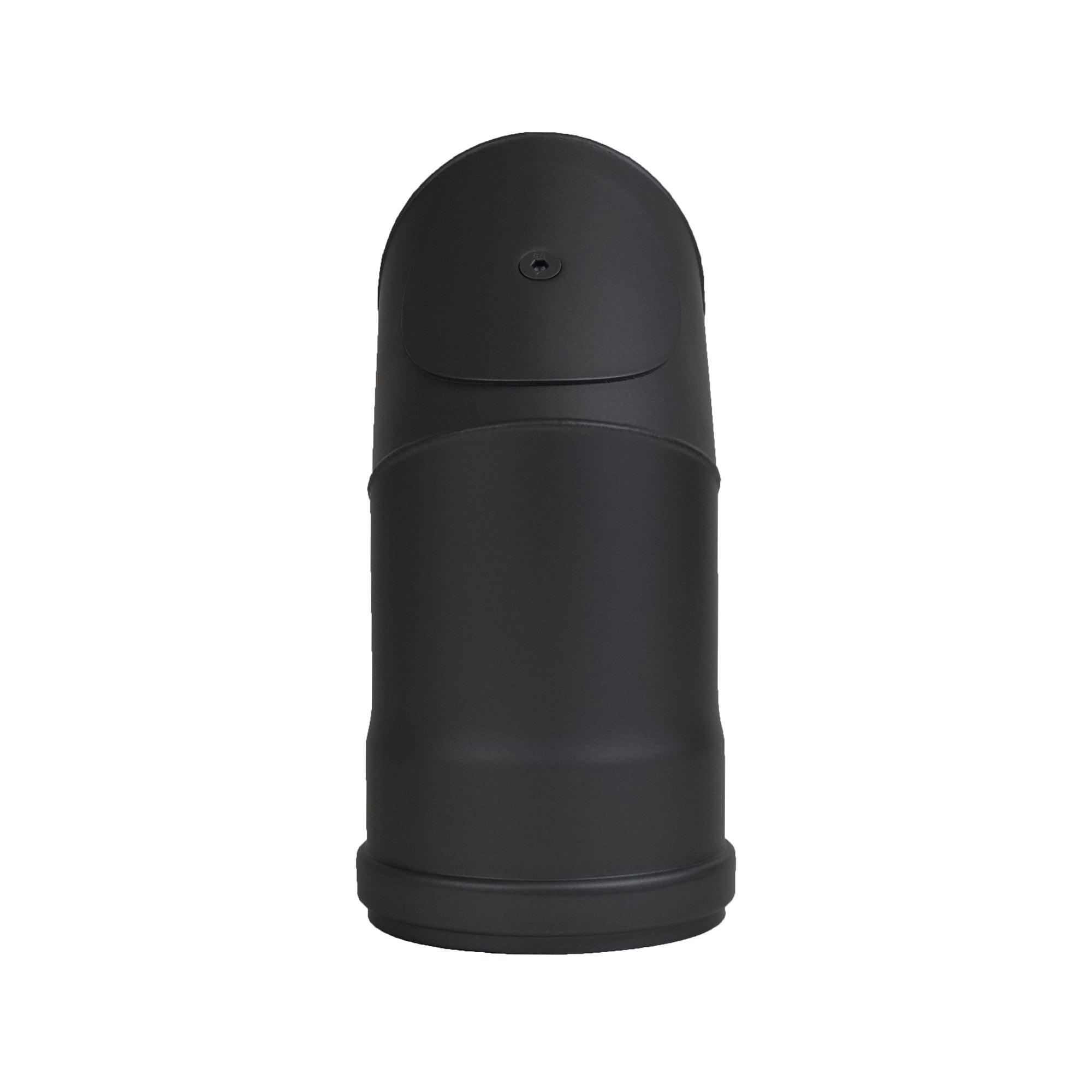

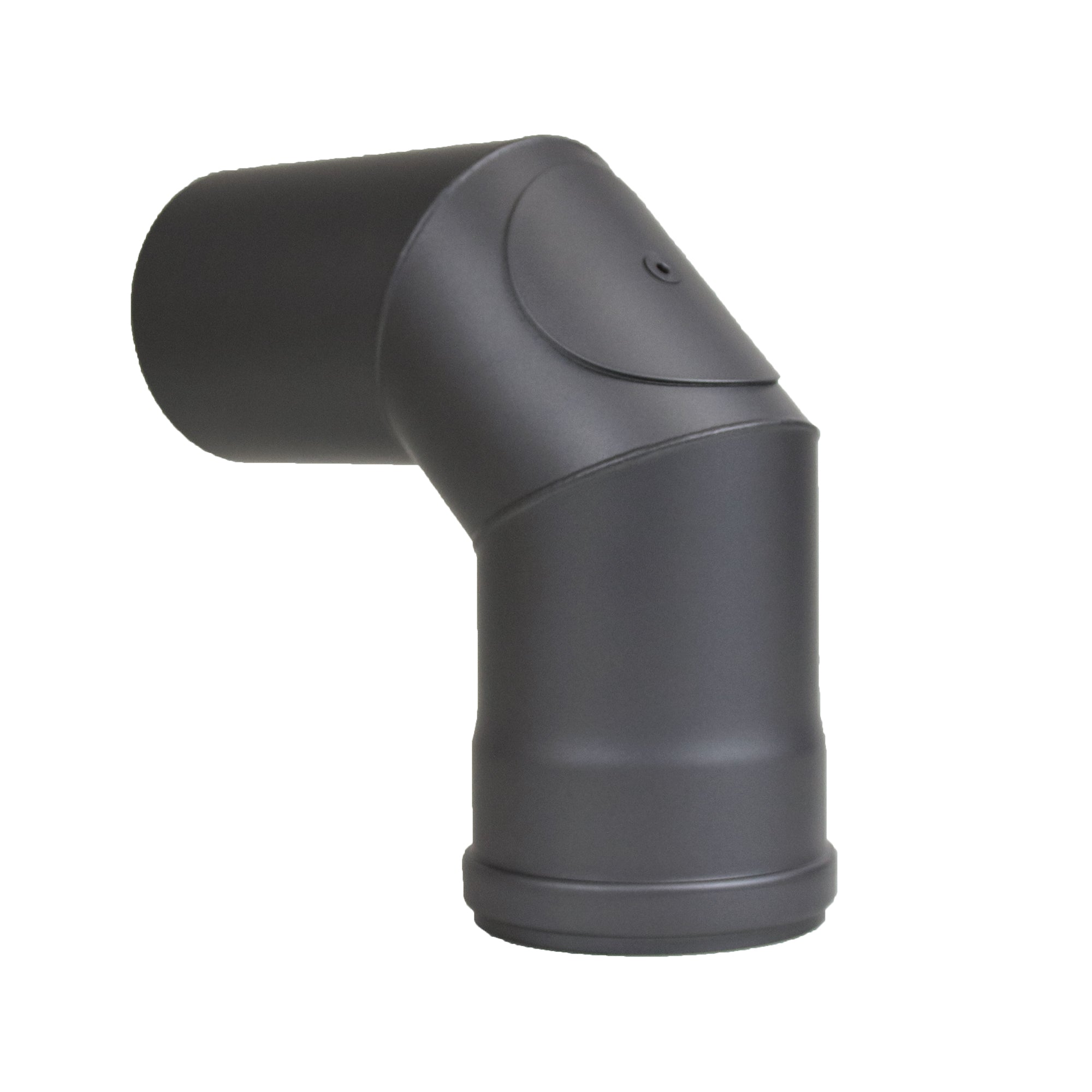

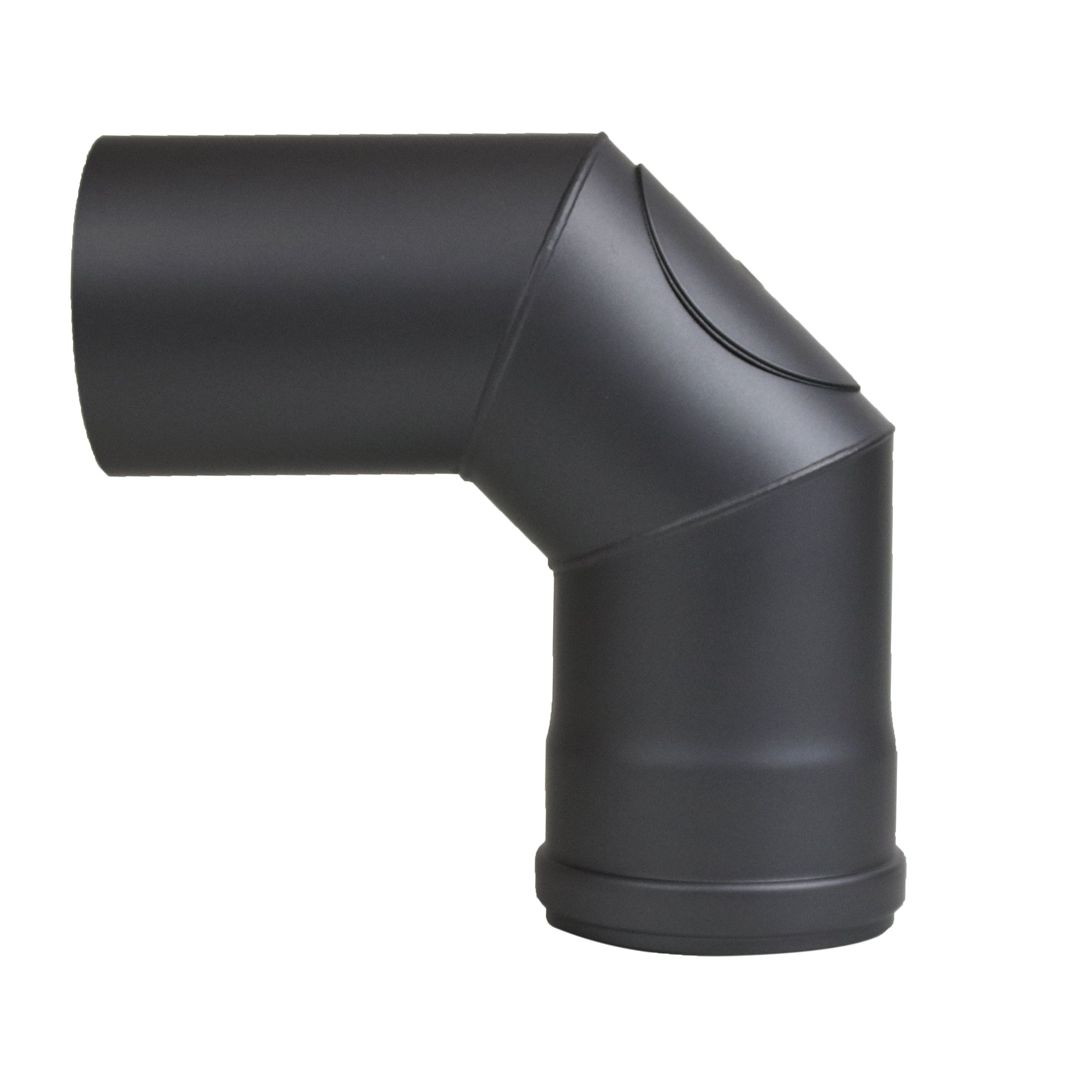

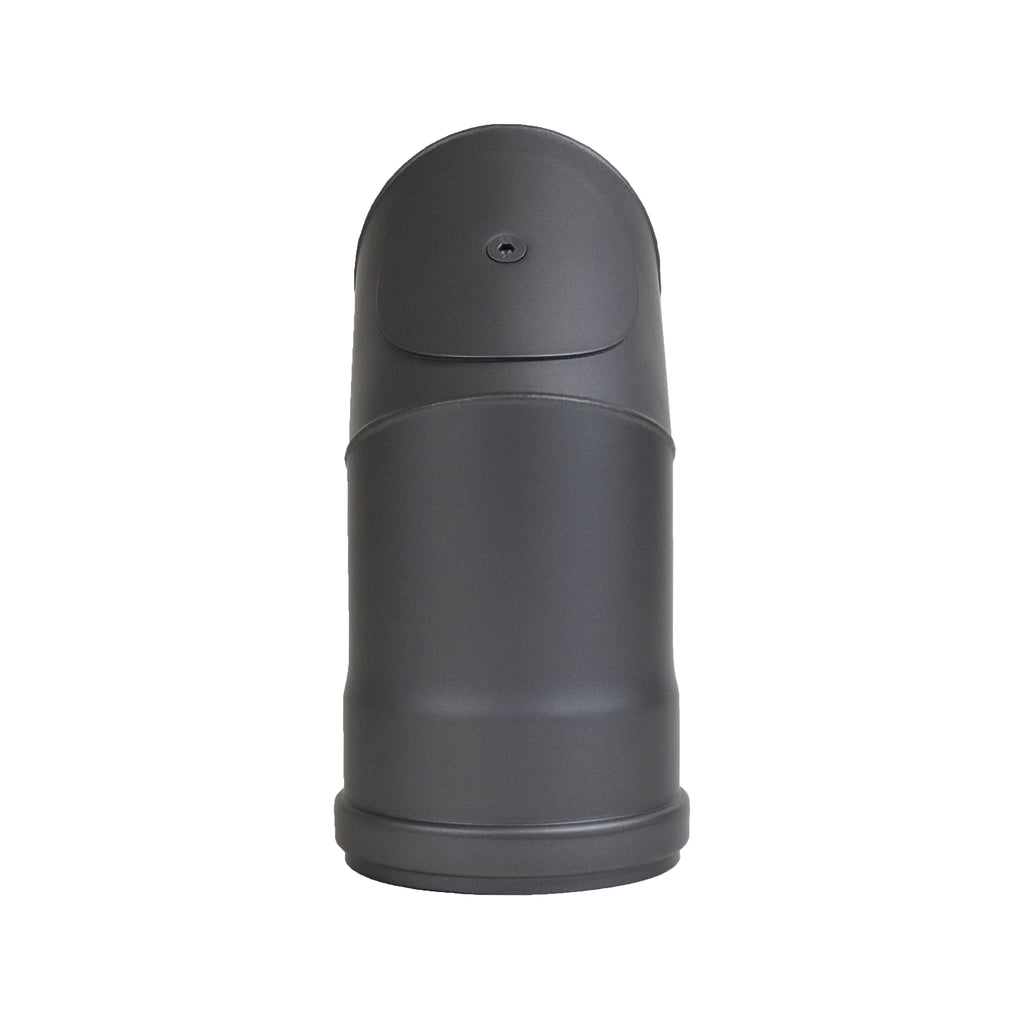

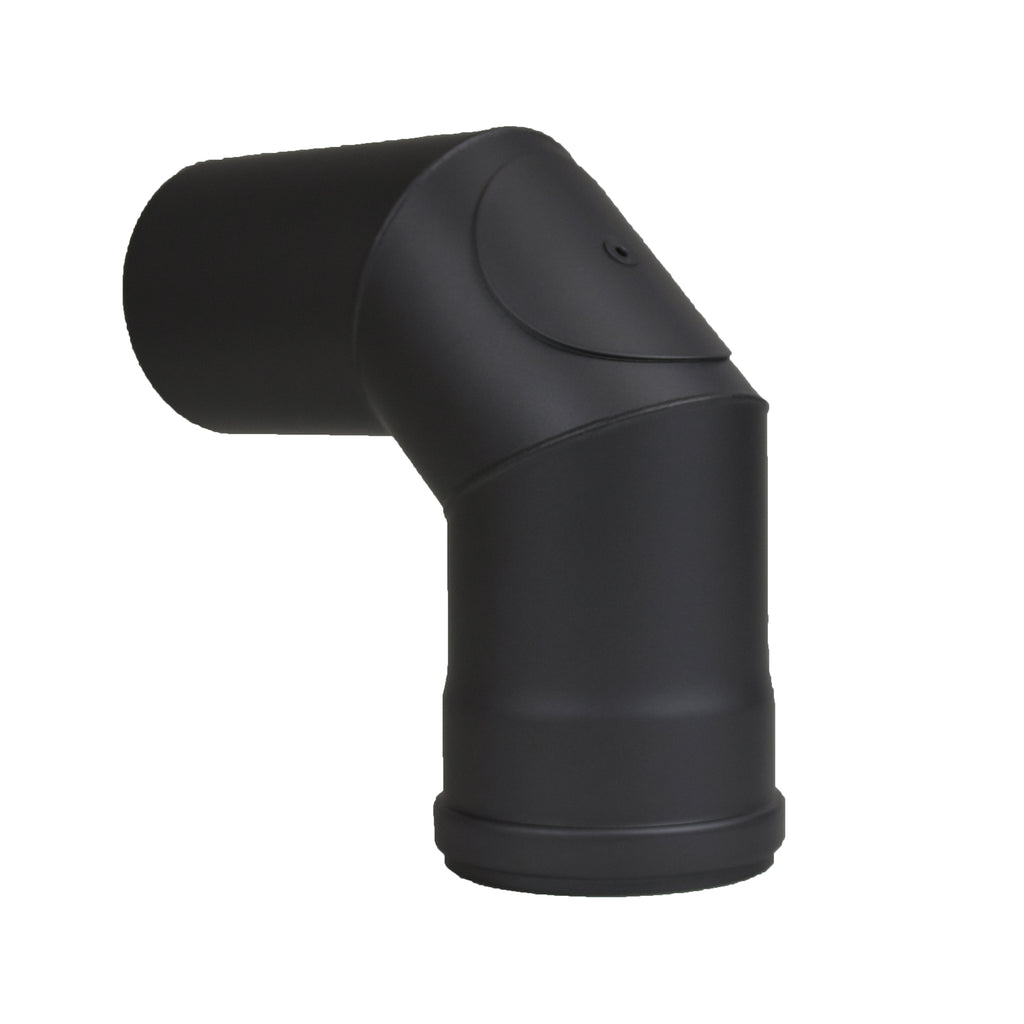

The elbow is used for a fireplace's rear or top connection to a chimney. Please note that other components, such as a double wall socket or extension, may also be necessary. Further, the elbow is used to extend and warp existing flue pipes.
Product dimension
Diameter 80 mm
180 mm x 180 mm
Diameter 100 mm
230 mm x 230 mm
Technical Data
Material
Steel 1.2 mm
Temperature resistant
up to 500°C
Socket
50 mm, with silicone sealing ring
with Cleaning door
Yes
polished cross seams
No
Norm
DIN EN 1856-2:2009
Surface coating
Senotherm-Lacquer
