Description
The flue pipe set includes all components for connecting your fireplace to the chimney on the flue gas side. This set is used if the fireplace is located directly in front of the chimney and the flue pipe exit is to be at the top. Please note that depending on the distance or location of your fireplace to the chimney, an angle or extension may need to be ordered additionally.
Product dimension
Height x Width
700 x 450 mm
Throttle valve
From bottom edge 400 mm
Technical Data
Material
Steel 2 mm
Temperature resistant
up to 500°C
Rejuvenation
50 mm, retracted
with Cleaning door
Yes
with Throttle valve
Yes
polished cross seams
Yes
Norm
DIN EN 1856-2:2009
Surface coating
Senotherm-Lacquer

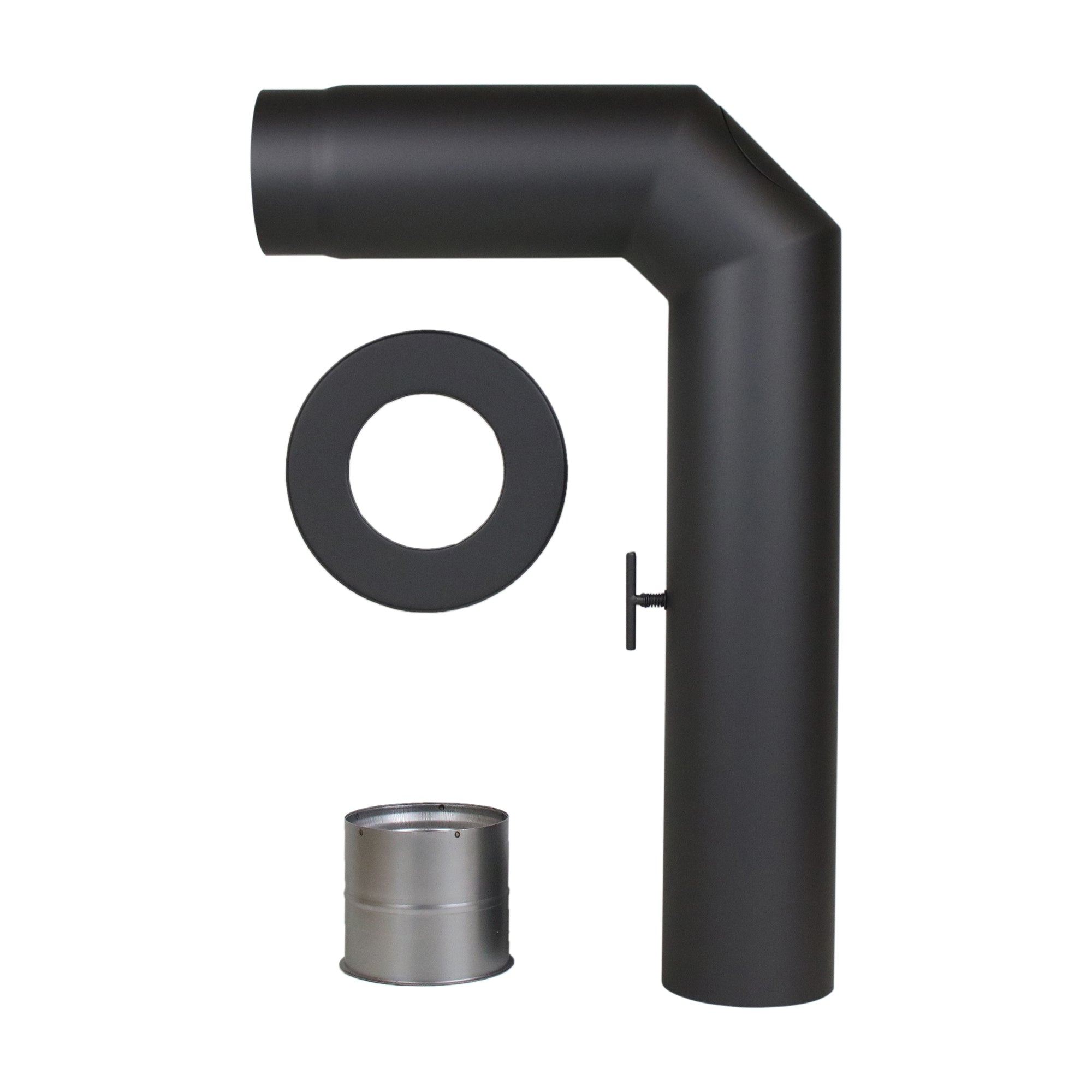

Scope of delivery
1x Main Pipe, 1x Wall socket; 1x Rosette 50 mm, DN 150: 1x Rosette 70 mm
