Description

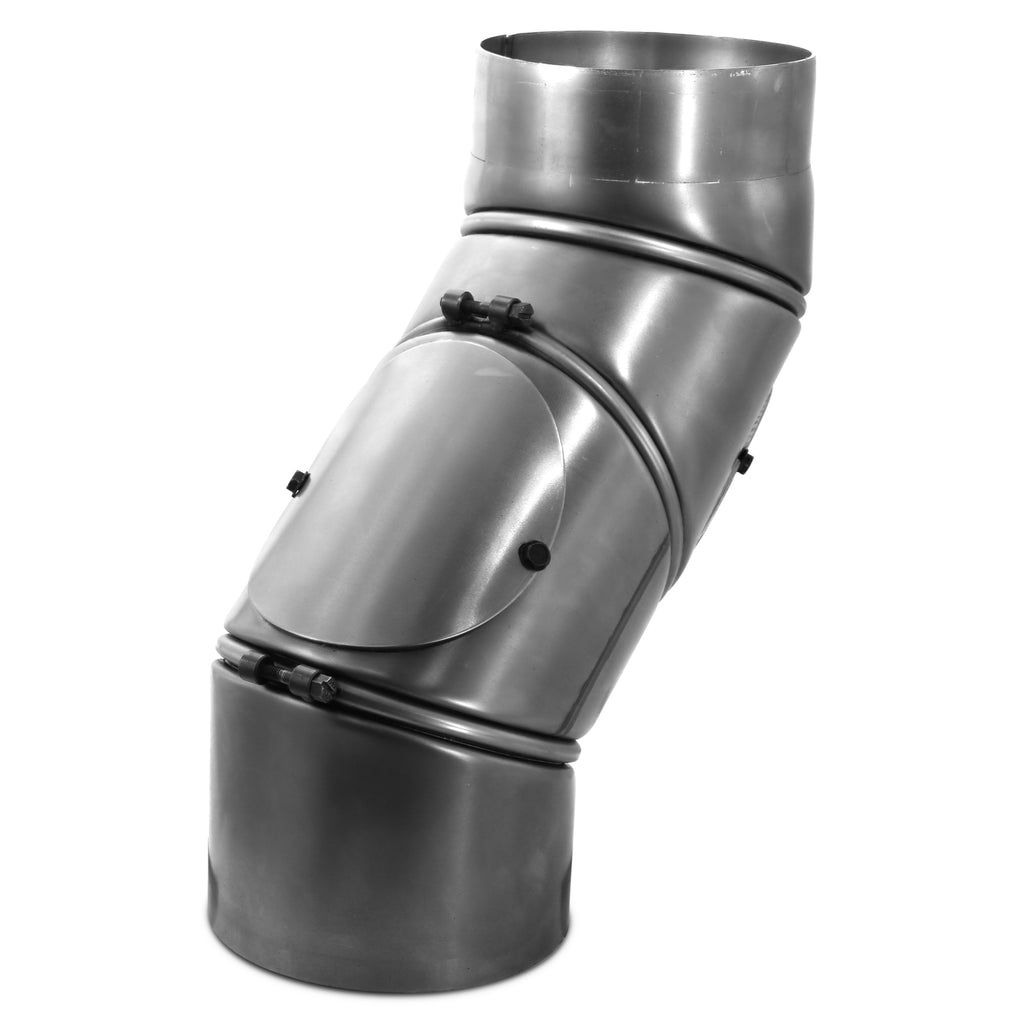

The elbow is used for a fireplace's rear or top connection to a chimney. Please note that other components, such as a double wall socket or extension, may also be necessary. Further, the elbow is used to extend and warp existing flue pipes.

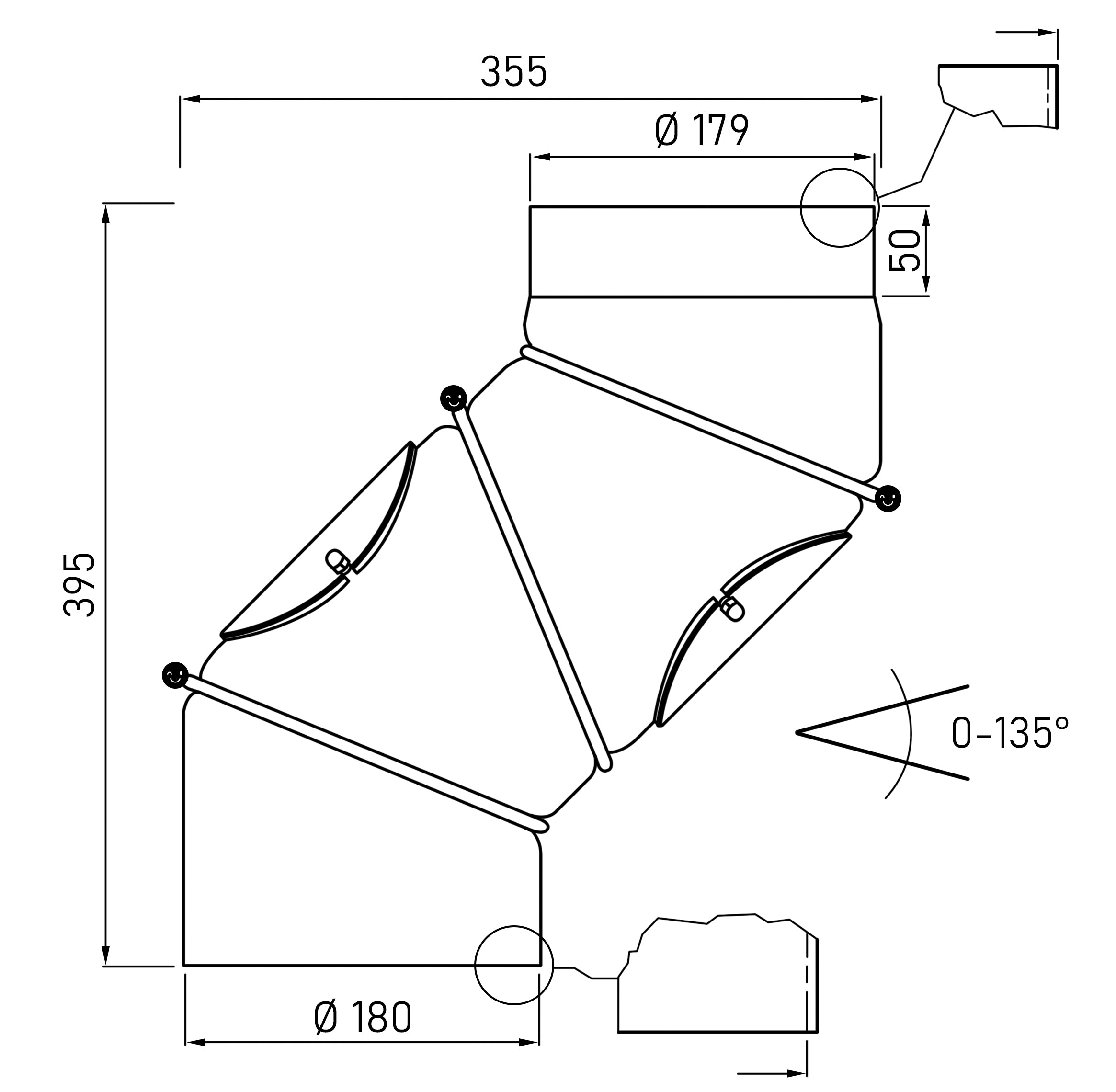

Outer Thigh
Diameter 150 mm
372 x 309 mm
Diameter 160 mm
393 x 335 mm
Diameter 180 mm
395 x 355 mm
Diameter 200 mm
432 x 400 mm
Technical Data
Material
Steel 2 mm
Temperature resistant
up to 600°C
Rejuvenation
50 mm, retracted

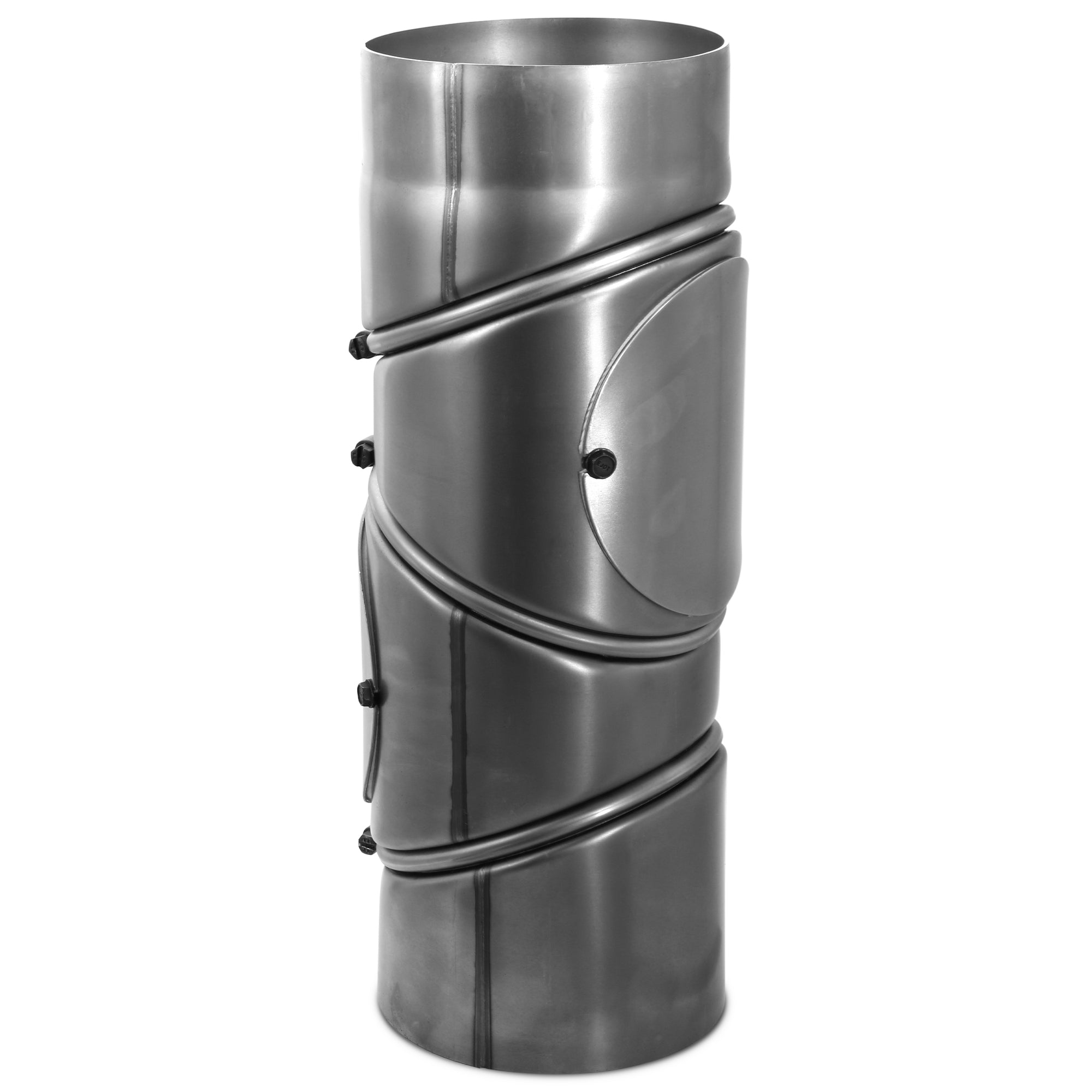

Adjustable
from 0° to 135°

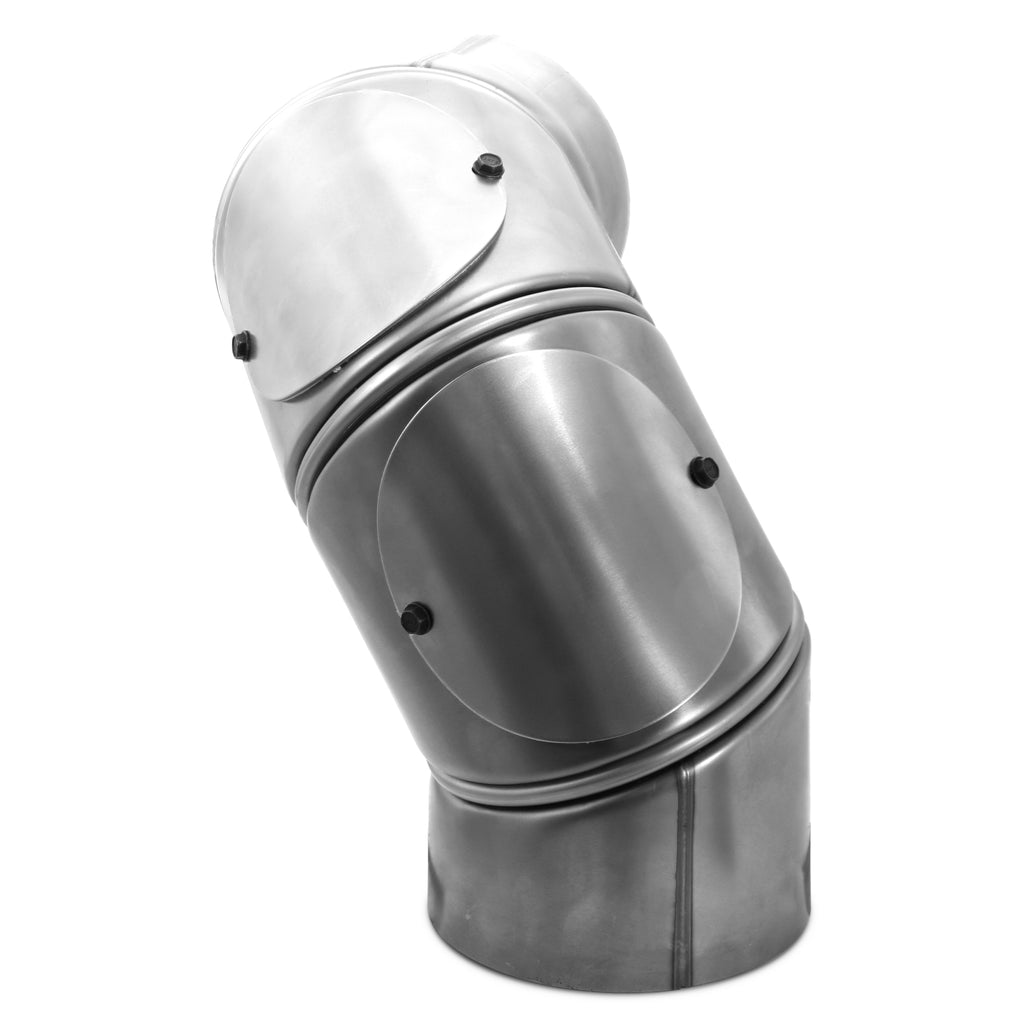

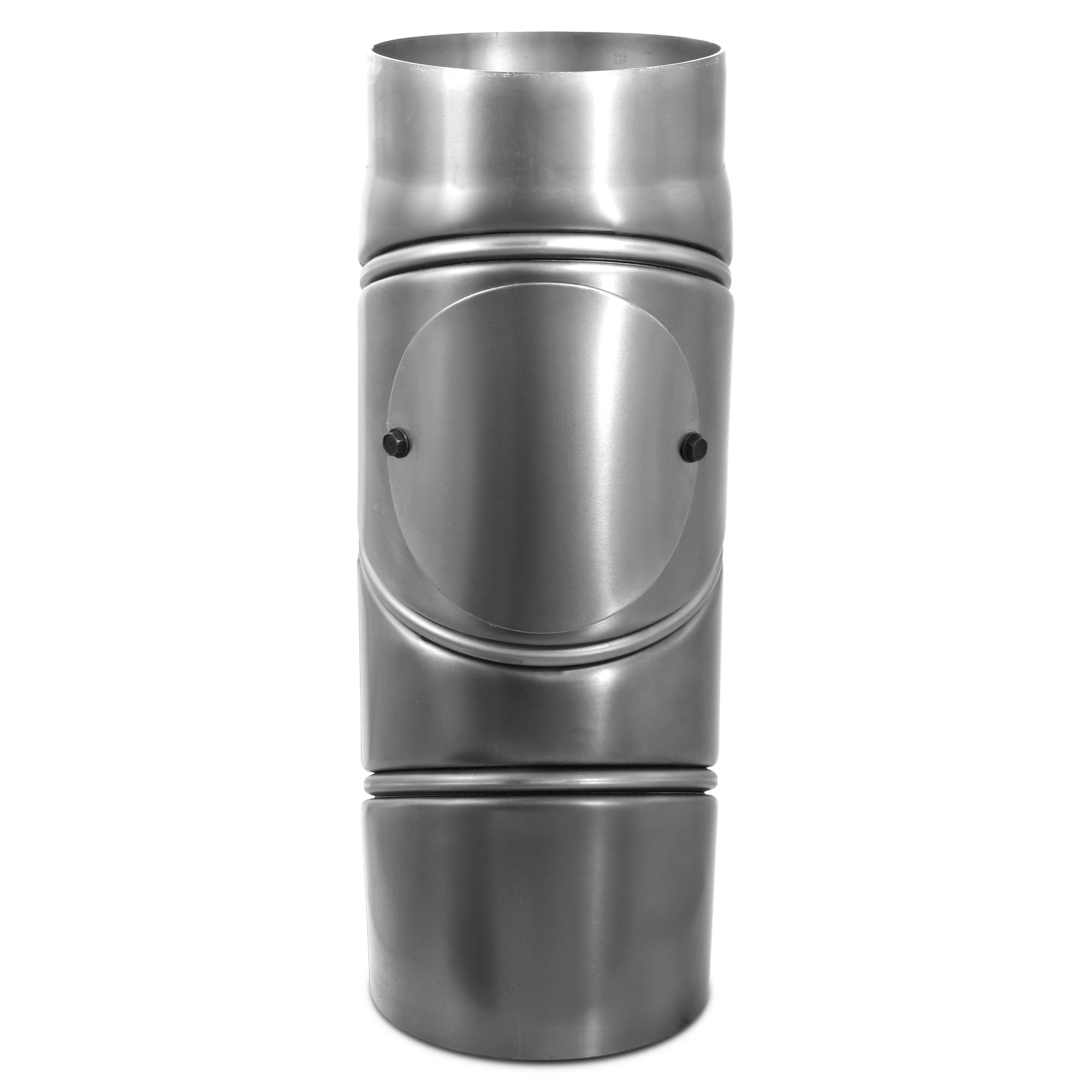

with Cleaning door
Yes, 2x
Norm
DIN EN 1856-2:2009
