Description

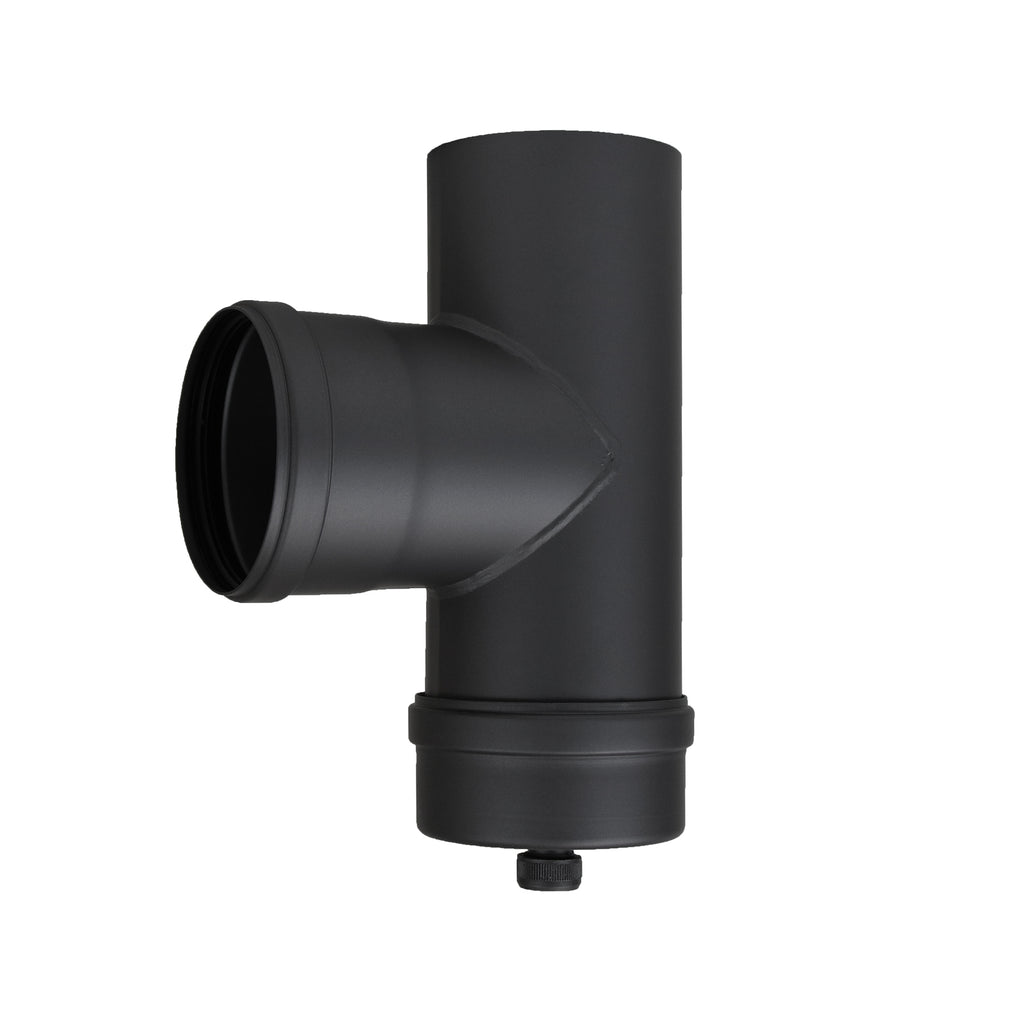

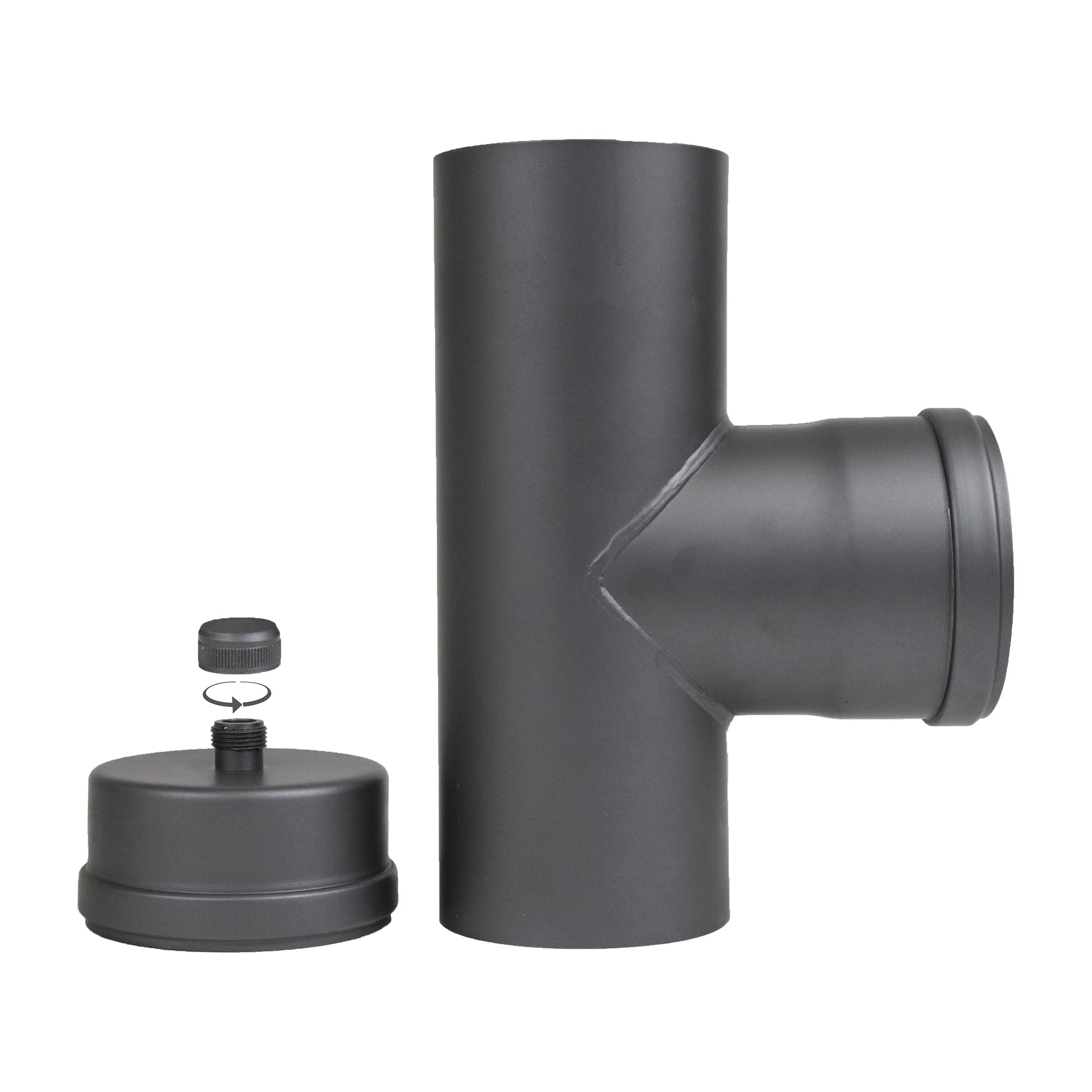

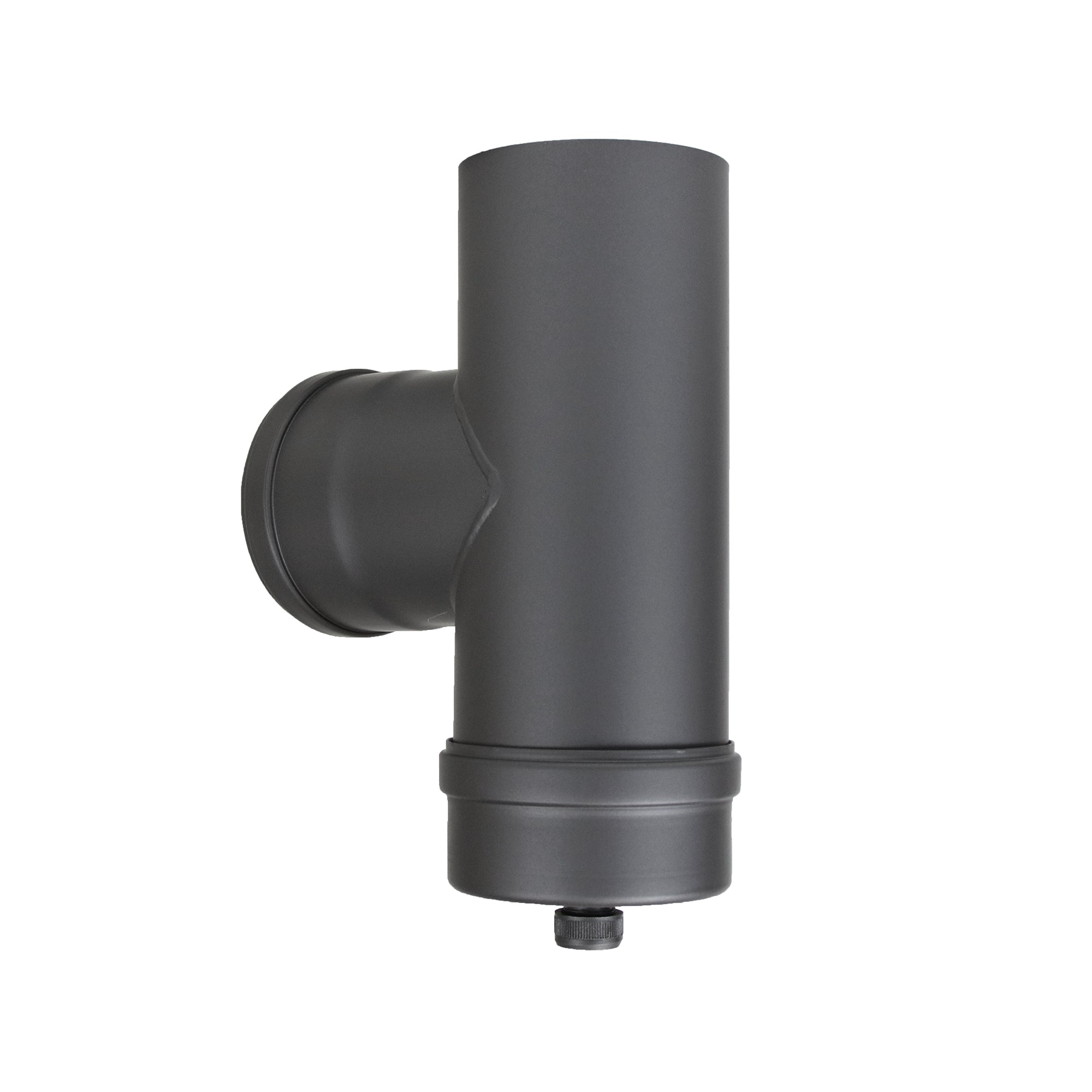

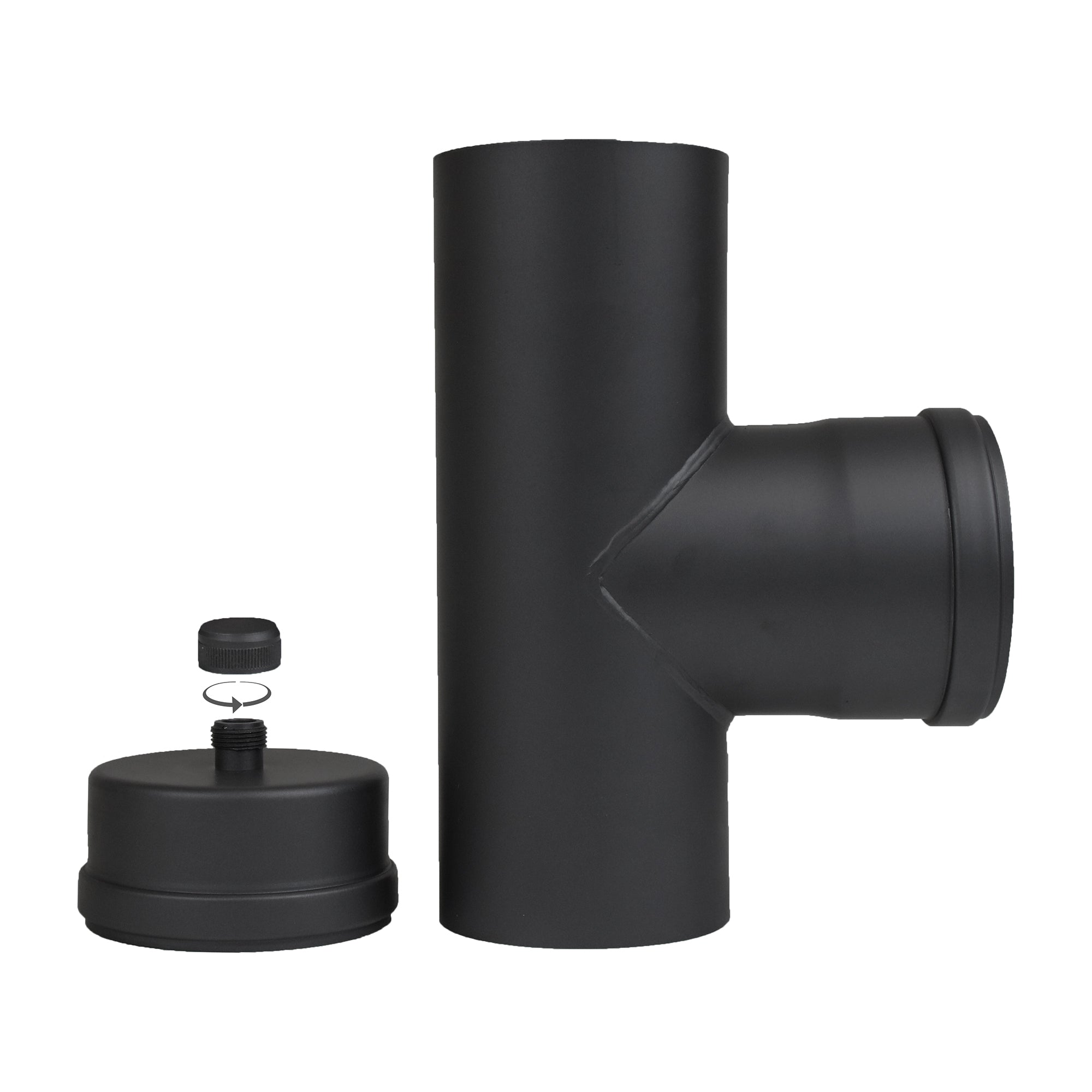

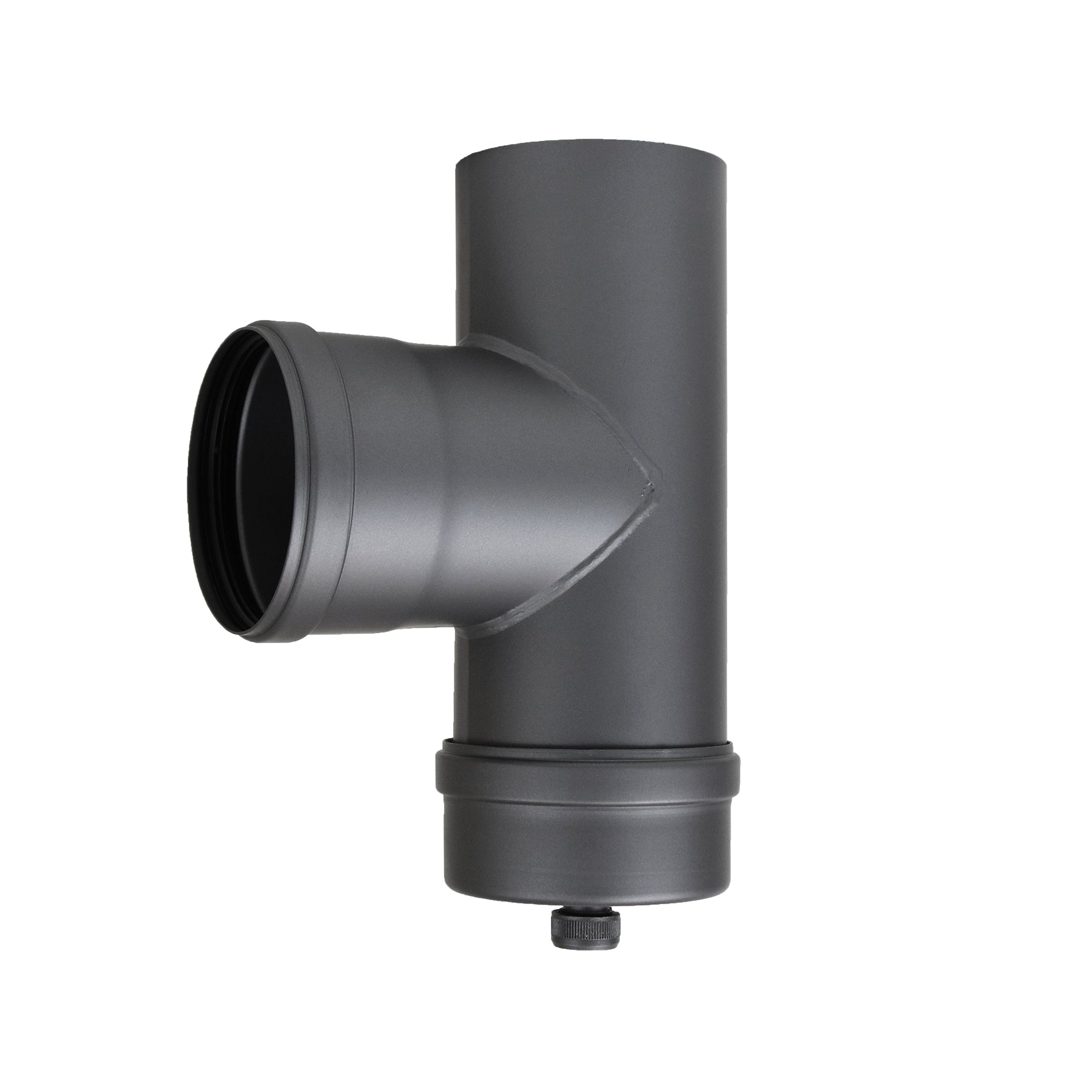

The T-piece with cleaning capsule and condensate drain is used as a connection to a pellet stove. Due to the frequent annual operation of pellet stoves, once a year cleaning of the pipes (connecting line) is usually unavoidable, the removable cleaning capsule makes this cleaning process much easier.
Total length with condensation capsule
Diameter 80 mm
245 mm
Diameter 100 mm
280 mm
Total width
Diameter 80 mm
160 mm
Diameter 100 mm
160 mm
Technical Data
Material
Steel 1.2 mm
Temperature resistant
up to 500°C
Socket
50 mm, with silicone sealing ring
with Cleaning door
Yes
polished cross seams
No
Norm
DIN EN 1856-2:2009
Surface coating
Senotherm-Lacquer
